切捆（分条）机系列-1

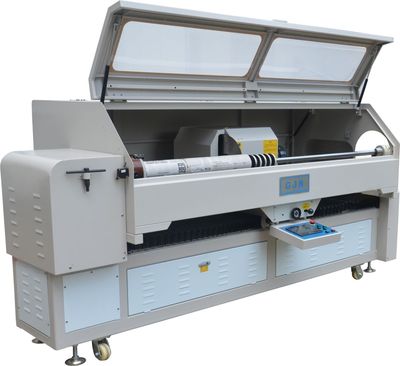

JN-888S-Ⅱ
计算机全自动切捆（分条）机
COMPUTER FULLAUTOMATIC
CUTTING(SLITTER)MACHINE
（适用于布料、化纤、胶布、不干胶、皮革、纸、朴等物料的分条）
(IT SUITABLE FOR CUTTINGFABRIC,CHEMICAL FABRIC,RUBBERIZED
FABRIC,ADHESIVETAPE,LEATHER,PAPER,INTELINING,ETC)
产品特点：
1、采用微电脑数码编程技术、可视人机接口，操作简捷、方便。
2、采用全包围式设计及全启式安全门护罩，磨刀自动吸尘装置，使操作更安全环保。
3、独特设计的磨刀装置，电眼实时监测刀片位置，可设定任何时段进行磨刀，保持刀刃锋利。
4、切布完成自动复位原点位置，自动升降式主轴尾顶夹锁紧机构，降低劳动强度，更具人性化操作。
5、同一物料可编程自动切出6种不同宽度的捆条。
6、主轴、切刀转速及X轴、Y轴的移动速度均可任意设置。（双伺服码达）
Features:
1、Controlled by microcomputer digitalprogramming technology, touch screen working interface, it is easy andconvenient to operate.
2、With full cover safety door design andautomatic dust collection device for knife sharpening, to make sure theoperation be more safer and environment protection.
3、Uniquely designed of knife sharpening device,the sensor monitors the knife position at real time, it can set to grind theknife at any time in order to make the knife keep sharp.
4、Automatic resetting to original locationafter finish cutting and self elevation unit locking structure for end of themain shaft to decrease labour strength.

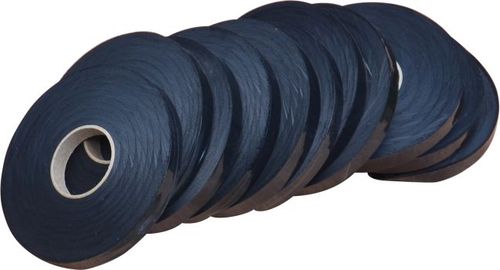

5、The same rolled fabric can be cut out sixdifferent width binding tapes.
6、The revolving speed of main shaft &cutter and the moving speed of X shaft & Y shaft can be set freely.( Doubleservo motors)
技术参数：
最大工作尺寸：外径φ30cm,长度210cm（可另订其他尺寸）
最窄可切：3mm
可用刀尺寸：φ350×φ38.1/φ32×2.8（mm）
φ400×φ38.1/φ32×2.8（mm）
电压：单相220V、50HZ
功率：2.5KW
需另接驳空气压缩气：0.4Mpa-0.8MPa
外形尺寸：298 x 140 x 140 (cm)
包装尺寸：311 x 153 x 158(cm)
凈重：700kg
毛重：900kg
Technical Parameters:
Maximum processing size:Diameter:Φ30cm Length:Φ210cm
(Other specification can be produce)
Minimum prosessing size:3mm
Dimension of applicable size:Φ350xΦ38.1/Φ32x2.8(mm)
Φ400xΦ38.1/Φ32x2.8(mm)
Veltage:single phase 220V,50Hz
Power:2.5Kw
Need to Use withCompressor:0.4Mpa~0.8Mpa
Machine Size:298 x 140 x 140 (cm)
Packing Size: 311 x 153 x 158 (cm)
Net Weight:700kg
Gross Weight:900kg
