切捆（分条）机系列-3

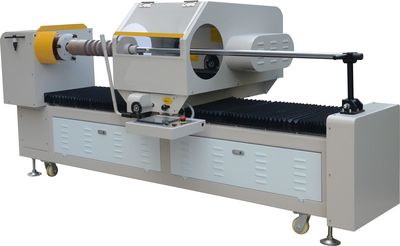

JN-833S-Ⅱ

伺服半自动型切捆分条机

SERVOSEMI-AUTOMATIC CUTTING (SLITTER) MACHINE

产品特点：

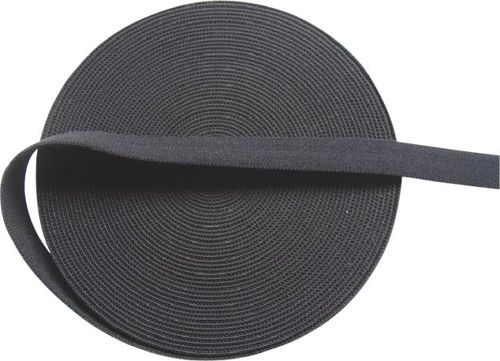

功能：适合于布料、皮革、纸、朴、化纤等材料切成各种规格的条带。伺服马达驱动滚珠丝杆移位、定位、高精度、变频调速、主轴、切刀可按不同材料成份任意改变切削速度，无需担心切口粘连。

Function:

It suitable for cutting fabric, leather, paper , interlining ,chemical fabric, etc.Servo motor drives the ball screwto shift and positioning , high accurate , frequency inverter control , themain shaft and cutter will change the cutting speed according to different material , there is no need to worry about the cutting edge may glue together.

技术参数：

最大工作尺寸：外径Φ30cm   长度210cm

最窄可切：3mm

可用刀尺寸：Φ350×Φ38.1/Φ32×2.8（mm）

            Φ400×Φ38.1/Φ32×2.8（mm）

电压：220V、50HZ

功率：2.2KW

需另接驳空气压缩气：0.5MPa-0.8MPa

外形尺寸：298×135×150(cm)

包装尺寸：303×138×162(cm)

净重：630kg

毛重：830kg

Technical Parameters:

Maximum processing size:Diameter:Φ30cm Length:Φ210cm

                                             (Other specification can be produce)

Minimum prosessing size:3mm

Dimension of applicable size:Φ350xΦ38.1/Φ32x2.8(mm)

                                                  Φ400xΦ38.1/Φ32x2.8(mm)

Veltage:single phase 220V,50Hz

Power:2.2Kw

Need to Use with Compressor:0.5Mpa~0.8Mpa

Machine Size:298×135×150 (cm)

Packing Size: 303×138×162 (cm)

Net Weight:730kg

Gross Weight:850kg
