切捆（分条）机系列-8

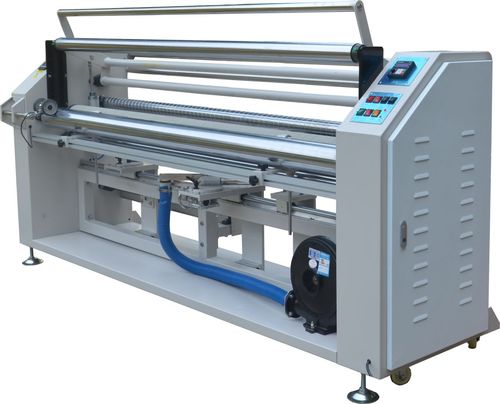

JN-325S纵直纹卷布机
Straight AndBias Fabric Rolling Machine
产品特点：
1、配备精确斜纹角度调节机构，斜纹卷布可在30度至60度之间精确调节。
2、卷布速度采用变频器进行无级调速，可点动操作卷布，方便放布操作。
3、配备数字式量码表，可实时米/码显示转换，准确测量卷布长度。
4、压布轴配备气动升降功能，操作方便、省力。
5、配备丝杆手轮移动斜纹摆杆位置，适应不同斜纹布宽，操作便捷、灵活，准确。
6、捆布松紧可随意调校。
Product Features:
1.Equipped with accurate bias angle adjustment device,bias fabric could be adjusted between 30-60 degreeaccurately.
2.Rolling speed could be adjusted byfrequency inventor,it is convenient to laying fabric.
3.Installed with digital measurement device,it could be changed from meter to yard at anytime,and make sure the fabric length is accurate.
4.Fabric pressing shaft is equipped with air operated lifting function,for operating conveniently and saving effort.
5.To positioning the bias swing rod by screw rod hand wheel to adapt different width of bias fabric,with the advantage of convenient,flexible and accurate operation.
6.The tightness of rolled fabric couldbe adjusted at anytime.
技术参数：
最大卷布宽度：210cm（84“）
最大卷布直径：Φ28cm
卷布电机功率：0.55Kw
切刀电机功率：0.33Kw
吹风电机功率：0.25Kw
输入电压：220V 50Hz
卷布速度：0～40米/分钟
需另接驳空气压缩气：0.4MPa~0.7MPa
外形尺寸：265x90x117（cm）
包装尺寸：273x83x130（cm）
凈重：390KG
毛重：570KG
Technical Parameters:
Maximum Coiling Width:210cm （84”）
Maximum Coiling Diameter:Φ28cm
Coiling Motor Power:0.55Kw
Cutter Motor Power:0.33Kw
Blow Motor Power:0.25Kw
Input Voltage:220V 50Hz
Coiling Speed:0~40m/min
Need To Use WithCompressor:0.4Mpa~0.7MPa
Machine Size:265x90x117（cm）
Packing Size:273x83x130（cm）
Net Weight:390KG
Gross Weight:570KG
