切捆（分条）机系列-9

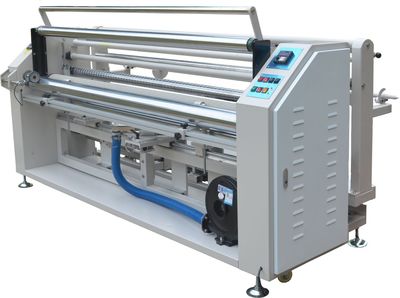

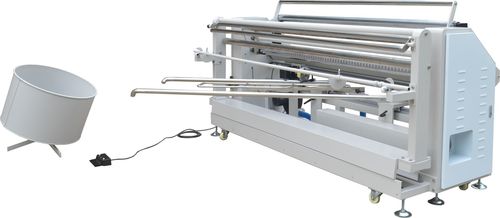

JN-325S-ED

自动对边纵直纹卷布机

Straight AndBias Fabric Rolling

Machine With Edge Device

产品特点：

1、配备精确斜纹角度调节机构，斜纹卷布可在30度至60度之间精确调节。

2、卷布速度采用变频器进行无级调速，可点动操作卷布，方便放布操作。

3、配备数字式量码表，可实时米/码显示转换，准确测量卷布长度。

4、压布轴配备气动升降功能，操作方便、省力。

5、配备丝杆手轮移动斜纹摆杆位置，适应不同斜纹布宽，操作便捷、灵活，准确。

6、捆布松紧可随意调校。

7、配备卷布自动齐边功能，使卷布效果更齐整完美，使物料损耗降到最低。

Product Features:

1.Equipped with accurate bias angleadjustment device,bias fabric could be adjusted between 30-60 degreeaccurately.

2.Rolling speed could be adjusted byfrequency inventor,it is convenient to laying fabric .

3.Installed with digital measurementdevice,it could be changed from meter to yard at anytime,and make sure thefabric

   length is accurate.

4.Fabric pressing shaft is equippedwith air operated lifting function,for operating conveniently and savingeffort.

5.To positioning the bias swing rod byscrew rod hand wheel to adapt different width of bias fabric,with the advantageof

convenient,flexible and accurateoperation.

6.The tightness of rolled fabric couldbe adjusted at anytime.

7.With edge alignment function to makethe rolling performance more perfectly and reducing the material consumption.

技术参数：

最大卷布宽度：210cm（84“）

最大卷布直径：Φ28cm

卷布电机功率：0.55Kw

切刀电机功率：0.33Kw

吹风电机功率：0.25Kw

对边电机功率：0.06Kw

输入电压：220V 50Hz

卷布速度：0～40米/分钟

需另接驳空气压缩气：0.4MPa~0.7MPa

外形尺寸：265x110x117（cm）

包装尺寸：273x103x130（cm）

凈重：495KG

毛重：695KG

Technical Parameters:

Maximum Coiling Width:210cm （84“）

Maximum Coiling Diameter:Φ28cm

Coiling Motor Power:0.55Kw

Cutter Motor Power:0.33Kw

Blow Motor Power:0.25Kw

Edge Alignment Motor Power:0.06Kw

Input Voltage:220V 50Hz

Coiling Speed:0~40m/min

Need To Use WithCompressor:0.4Mpa~0.7MPa

Machine Size:265x110x117（cm）

Packing Size:273x103x130（cm）

Net Weight:495KG

Gross Weight:695KG
